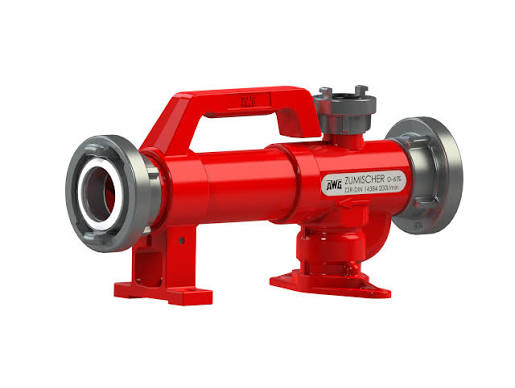

AWG Z2R Foam Inductor 200 LP
Wholesale pricing, tiered volume discounts, and GST invoice terms provided based on your required quantity and delivery location across Pakistan.
Product Technical Overview
AWG Z2R Foam Inductor – Adjustable Firefighting Foam Proportioner
The AWG Z2R Foam Inductor is a firefighting foam proportioning device designed to mix liquid foam concentrate into a water stream. Also known as the AWG Zumischer Z2R, this equipment uses the Venturi principle to draw foam concentrate through a pickup tube and introduce it into a hose line.
With a nominal flow rating of 200 L/min for the Z2 model, the AWG foam proportioner is designed for compatible firefighting systems that require controlled foam induction. It is installed between the pump and a suitable foam branchpipe or nozzle.
Key Features of the AWG Z2R Foam Inductor
- 200 L/min nominal flow: Designed for compatible Z2 foam application equipment.
- Venturi induction system: Uses flowing water to draw foam concentrate into the hose line.
- Adjustable mixing rate: Select the required setting according to the exact model and foam manufacturer's instructions.
- Inline installation: Connects between the pump and compatible foam branchpipe or nozzle.
- Portable firefighting equipment: Suitable for appropriately configured mobile and fixed hose systems.
- Multiple configurations: Body materials and connection types may vary by AWG model.
- Professional fire protection use: Designed for firefighting operations where proportioned foam solution is required.
Applications of AWG Zumischer Z2R
AWG Z2R foam induction equipment can be considered for compatible systems used in:
- Industrial fire protection
- Fire and rescue service equipment
- Fuel storage and handling facilities
- Petroleum and chemical processing sites
- Portable firefighting foam systems
- Commercial and industrial premises with suitable foam protection
- Emergency response equipment using compatible foam nozzles
The correct application depends on the fuel hazard, foam concentrate, system configuration and relevant approvals. Verify suitability before installation or use.
How the AWG Z2R Foam Proportioner Works
The AWG Z2R uses the Venturi principle to create suction as water passes through the inductor. This suction draws liquid foam concentrate from its container through the pickup tube and introduces it into the water stream.
The resulting foam solution travels through the hose to compatible foam-generating equipment. The correct mixing setting, operating pressure, water flow and downstream nozzle are essential for reliable induction.
Technical Specifications
- Product name: AWG Z2R
- Alternative designation: AWG Zumischer Z2R
- Manufacturer: AWG Fittings GmbH
- Product type: Firefighting foam inductor / proportioner
- Nominal flow rate: 200 L/min for the Z2 model
- Operating principle: Venturi induction
- Mixing range: Confirm the exact model and adjustment markings
- Installation: Between pump and compatible foam branchpipe or nozzle
- Connections: Confirm from the product label and configuration
- Body material: Varies by model
Specifications can vary by model and configuration. Consult the current AWG data sheet before publishing additional technical values.
Installation and Compatibility
The AWG Z2R must be matched with suitable downstream firefighting equipment. AWG's operating instructions specify that the connected foam nozzle or branchpipe must deliver at least 200 L/min at 5 bar for the Z2 model. If the downstream equipment has insufficient flow, foam concentrate may not be drawn into the water stream correctly.
Follow the manufacturer's instructions for connection, operating pressure, mixing-rate selection and foam concentrate handling.
Buy AWG Z2R Foam Inductor from FASCO
FASCO supplies firefighting and fire safety equipment for industrial and commercial applications. Contact FASCO to enquire about the AWG Z2R Foam Inductor, availability, pricing, connection options and manufacturer documentation.
Before ordering, confirm the flow rate, connection type, body configuration and compatibility with your existing firefighting foam equipment.
