Product Technical Overview

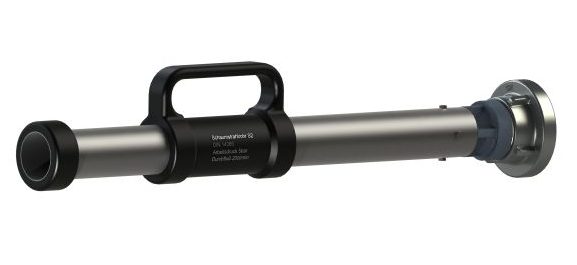

AWG S2 Foam Nozzle 200 LPM, Germany

The AWG S2 Foam Nozzle 200 LPM is firefighting foam application equipment from AWG Fittings GmbH, a German manufacturer of firefighting fittings and equipment. Designed for use in compatible firefighting foam systems, the S2 heavy foam nozzle delivers a nominal flow rate of 200 litres per minute at a reference operating pressure of 5 bar.

Foam nozzles are important components in firefighting operations where a suitable foam solution is required to cover burning surfaces and help control specific types of fire. The nozzle works with an appropriate water and foam concentrate solution to produce and discharge foam towards the target area. Correct equipment selection depends on the fire hazard, foam concentrate, proportioning arrangement, available water supply and required application technique.

The AWG S2 designation identifies a heavy foam nozzle in the manufacturer's product range. Its catalogue-listed design includes a stainless-steel pipe, protective components and a handle. Connection options vary according to the supplied configuration, making it important to confirm the exact model and inlet before purchase.

Product name clarification: Your original product name includes “High Expansion.” The available AWG documentation identifies the standard S2 as a heavy, low-expansion foam nozzle. This description therefore uses the documented S2 specifications and does not claim that the product generates high-expansion foam. Please confirm the exact model before publishing the final listing.

Key Features of the AWG S2 Foam Nozzle

• Recognised manufacturer: AWG Fittings GmbH is a German manufacturer of firefighting fittings and foam equipment.
• 200 LPM nominal flow rate: The standard S2 heavy foam nozzle is rated at 200 litres per minute at 5 bar.
• Low-expansion foam application: The documented S2 configuration is intended for heavy foam production and discharge.
• Stainless-steel construction: AWG documentation identifies stainless steel as a construction material for its heavy foam nozzle range.
• Multiple connection configurations: The S2 range is available with different inlet connection options, depending on the model.
• Firefighting system compatibility: The nozzle should be matched with a suitable foam inductor, concentrate and hose system.
• Professional equipment range: Suitable for consideration in compatible industrial and emergency firefighting applications.

Technical Specifications

The following specifications refer to the documented AWG S2 heavy foam nozzle. Confirm the exact supplied version with FASCO before ordering.

• Brand: AWG
• Manufacturer: AWG Fittings GmbH
• Country associated with manufacturer: Germany
• Product type: Heavy foam nozzle / branch pipe
• Model: S2
• Nominal flow rate: 200 LPM
• Reference pressure: 5 bar
• Effective foam throw distance: Approximately 23 metres under documented test conditions
• Foam expansion ratio: Approximately 12–15, as listed in the manufacturer's S2 technical data
• Construction: Stainless-steel pipe; exact materials of other components depend on configuration
• Inlet connection: To be confirmed for the supplied variant
• Compatible foam concentrate and proportioning arrangement: To be verified for the exact application
• High-expansion capability: Not established for the standard S2 heavy foam nozzle

Performance figures are catalogue values and may vary with pressure, concentrate type, proportioning rate and operating conditions. Do not apply the standard S2 specifications to a different AWG model or combination nozzle without checking its datasheet.

Applications of the AWG S2 Foam Nozzle

Industrial Fire Protection

Industrial facilities may use firefighting foam equipment as part of a planned fire protection system. The AWG S2 may be considered where a 200 LPM heavy foam nozzle meets the system's requirements and the selected foam is appropriate for the identified hazard.

Flammable-Liquid Fire Hazards

Suitable firefighting foams can help cover certain flammable-liquid surfaces and reduce the release of vapours. The foam concentrate and application method must be selected for the particular fuel and fire scenario.

Commercial and Warehouse Facilities

Some commercial premises and warehouses use foam application equipment as part of their fire response arrangements. The appropriate nozzle should be selected according to the site's risk assessment, installed equipment and approved firefighting procedures.

Fire and Rescue Services

Fire and rescue teams may use foam branch pipes as part of compatible hose-line equipment. The nominal flow, working pressure, connection and concentrate compatibility should be confirmed before the equipment is deployed.

Emergency Response Equipment

The AWG S2 may be included in an emergency firefighting equipment inventory where its documented performance matches the intended use. It should be operated by trained personnel in accordance with manufacturer instructions and relevant safety procedures.

How to Choose the Right AWG Foam Nozzle

1. Confirm the foam type. Determine whether the application requires heavy foam, medium foam or high-expansion foam. These are different applications and should not be treated as interchangeable.

2. Check the flow rate. Ensure that a nominal flow rate of 200 LPM is appropriate for the firefighting system.

3. Verify operating pressure. The documented S2 flow rating is measured at 5 bar. Confirm the pressure available at the nozzle during operation.

4. Match the inlet connection. Check the required coupling type and size to ensure compatibility with the hose and proportioning equipment.

5. Confirm foam concentrate compatibility. Use a suitable concentrate and the correct proportioning arrangement for the fire hazard and nozzle design.

6. Request the correct datasheet. Ask for the manufacturer's model number and technical documentation, particularly if the supplier describes the product as a high-expansion nozzle.

Why Source AWG Firefighting Equipment Through FASCO?

FASCO supplies firefighting and fire safety equipment for customers seeking suitable solutions for commercial, industrial and emergency response requirements. Selecting the correct equipment involves checking technical specifications, connection compatibility and suitability for the intended fire hazard.

When enquiring about the AWG S2 Foam Nozzle 200 LPM, confirm the exact product version, inlet connection and foam type before purchasing. These checks help ensure that the selected equipment is suitable for the intended firefighting system.

Contact FASCO for availability information and assistance with your firefighting equipment requirements in Pakistan.

Buy the AWG S2 Foam Nozzle 200 LPM from FASCO

Looking for an AWG S2 Foam Nozzle 200 LPM for your firefighting equipment inventory? Contact FASCO to enquire about the available model, connection options and applicable technical documentation.

Before placing an order, verify whether you require a low-expansion S2 nozzle or a different AWG product designed for another foam expansion range. Selecting the correct model is essential for safe and effective use.

FASCO — Firefighting Equipment and Fire Safety Solutions.
