Product Technical Overview

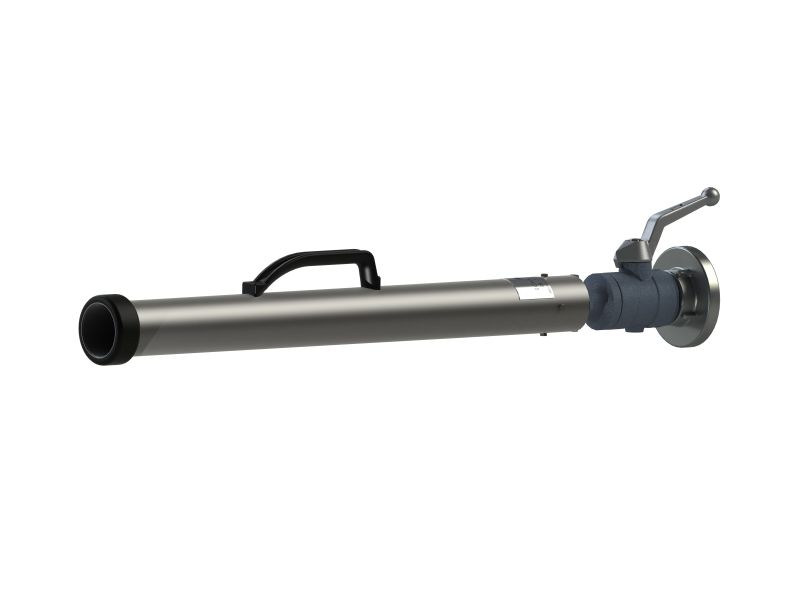

AWG S8 Foam Nozzle 800 LPM, Germany

The AWG S8 Foam Nozzle 800 LPM is professional firefighting equipment manufactured by AWG Fittings GmbH in Germany. Designed for heavy foam application, this branch pipe is intended for use in compatible firefighting systems where a higher-volume foam discharge is required. The standard S8 model is rated at 800 litres per minute at a reference pressure of 5 bar.

Foam branch pipes are important components in firefighting systems that use suitable foam concentrates to cover burning surfaces and help suppress particular types of fire. The AWG S8 uses a nozzle design that introduces air into the water-and-foam solution, producing low-expansion foam that can be directed towards the target area. Effective performance depends on the foam concentrate, proportioning equipment, water supply, operating pressure and correct application method.

AWG's S8 heavy foam branch pipe is part of its professional foam equipment range. Manufacturer documentation lists a stainless-steel pipe and multiple connection configurations, including Storz and threaded options. Depending on the specific version, the product may be supplied with or without a shut-off valve. Customers should confirm the exact configuration before ordering.

Important model clarification: The product name you provided includes “High Expansion.” However, the standard AWG S8 is documented as a low-expansion heavy foam nozzle. AWG also manufactures medium-expansion foam equipment, but the S8 designation alone does not establish high-expansion capability. The correct model should be confirmed before publishing this product under a high-expansion name.

Key Features of the AWG S8 Foam Nozzle

• German manufacturer: Produced by AWG Fittings GmbH, a manufacturer of firefighting fittings and foam equipment.
• 800 LPM nominal flow rate: Designed for a flow rate of 800 litres per minute at a reference pressure of 5 bar.
• Low-expansion foam application: The standard S8 model is designed for heavy foam discharge.
• Stainless-steel construction: The nozzle pipe is made from stainless steel according to AWG product documentation.
• Multiple connection options: Available configurations include Storz and threaded connections, depending on the product number.
• Shut-off options: Some variants include a shut-off valve, while other configurations may be supplied without one.
• Long-range foam discharge: Manufacturer documentation lists an effective throw distance of approximately 33 metres under specified test conditions.
• Compatibility with foam inductors: AWG heavy foam branch pipes are designed to operate with suitable AWG foam inductors, including compatible Z2, Z4 and Z8 systems.

Technical Specifications

The following details refer to AWG's standard S8 heavy foam branch pipe. Exact dimensions, weight and connections depend on the selected product number.

• Brand: AWG
• Manufacturer: AWG Fittings GmbH
• Country associated with manufacturer: Germany
• Product type: Heavy foam branch pipe / low-expansion foam nozzle
• Model: S8
• Nominal flow rate: 800 LPM
• Reference pressure: 5 bar
• Foam expansion ratio: Approximately 12–15
• Effective foam throw distance: Approximately 33 metres
• Maximum permissible operating pressure: 16 bar (PN16), subject to the exact model
• Material: Stainless-steel pipe; coupling and other components may use different materials depending on the configuration
• Connection options: Storz 65, Storz 75 (B), BSP G2-inch male and other variants, depending on model
• Shut-off valve: Available on selected configurations
• Applicable standard: EN 16712-3, as listed in AWG documentation

These are catalogue specifications, not a guarantee of performance in every installation. Actual foam output and throw distance can vary with operating pressure, concentrate type, proportioning rate and system configuration.

Applications of the AWG S8 Foam Nozzle

Industrial Fire Protection

Industrial facilities may use foam equipment as part of a planned fire protection system. The AWG S8 may be considered when the system requires a high-volume, low-expansion foam branch pipe and the selected concentrate is suitable for the identified fire hazard.

Flammable-Liquid Fire Response

Suitable firefighting foam can help cover certain flammable-liquid surfaces and reduce the release of flammable vapours. The concentrate and application method must match the fuel and hazard, and the equipment must be used as part of an appropriate firefighting strategy.

Warehouses and Commercial Facilities

Some warehouses and commercial sites require foam application equipment to address specific fire risks. Equipment selection should follow the facility's fire risk assessment and system design, including the required flow rate, operating pressure and hose connections.

Fire and Rescue Services

Fire and rescue teams may use heavy foam branch pipes as part of compatible firefighting hose systems. The S8's 800 LPM flow rate makes it important to confirm that the pump, water supply, proportioning equipment and hose system can support the intended operation.

Emergency Response Equipment

The AWG S8 may form part of a professional firefighting equipment inventory where its verified specifications meet operational requirements. Trained personnel should operate the equipment in accordance with manufacturer instructions and applicable safety procedures.

How to Choose the Correct AWG Foam Nozzle

1. Confirm the required foam expansion. Determine whether the application requires low-expansion, medium-expansion or high-expansion foam. These nozzle types have different operating purposes and should not be treated as interchangeable.

2. Check the flow rate. The standard S8 is rated at 800 LPM at 5 bar. Ensure that the pump and water supply can deliver the required flow and pressure.

3. Verify the connection. Match the inlet coupling to the existing hose or equipment. Confirm the precise Storz size or threaded connection before ordering.

4. Select the required shut-off configuration. Check whether the supplied version includes a shut-off valve and whether that configuration suits the intended operation.

5. Check foam concentrate compatibility. Use a concentrate appropriate for the target hazard and compatible with the proportioning equipment and nozzle.

6. Confirm the model number. Request the AWG product number and datasheet, especially if the supplier advertises the S8 as a high-expansion nozzle.

Why Choose AWG Firefighting Equipment from FASCO?

FASCO supplies firefighting and fire safety equipment for customers seeking solutions for industrial, commercial and emergency response requirements. Choosing suitable equipment involves checking technical specifications, system compatibility and the type of foam required for the intended application.

When enquiring about the AWG S8 Foam Nozzle 800 LPM, confirm the exact connection, shut-off arrangement and foam expansion type. These checks help ensure the selected product meets the requirements of your firefighting system.

Contact FASCO for availability information and assistance with sourcing firefighting equipment in Pakistan.

Buy the AWG S8 Foam Nozzle 800 LPM from FASCO

Looking for an AWG S8 Foam Nozzle 800 LPM for your firefighting equipment inventory? Contact FASCO to enquire about availability, product configurations and technical documentation.

Before ordering, verify whether the standard S8 low-expansion branch pipe meets your requirements or whether a different AWG medium- or high-expansion product is needed. Selecting the correct nozzle helps ensure compatibility with your foam system and intended application.
