Product Technical Overview

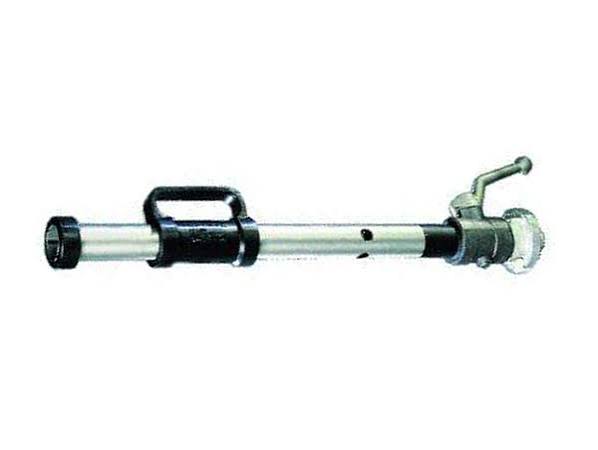

Rosenbauer TOTAL S2 Foam Making Branch Pipe, 200 LPM

The Rosenbauer TOTAL S2 Foam Making Branch Pipe is designed for firefighting teams that require a dependable way to apply heavy firefighting foam during emergency response operations. With a nominal flow rate of 200 litres per minute (200 LPM) at a working pressure of 5 bar, the S2 configuration is intended for controlled foam application using a compatible water and foam concentrate solution.

Foam-making branch pipes are important components of firefighting systems where foam is needed to cover burning surfaces and help control fires involving suitable flammable liquids or combustible materials. The Rosenbauer S2 heavy foam branch pipe uses a nozzle arrangement that draws air into the discharged solution, creating foam that is directed towards the target area. The resulting foam can help cover the fuel surface and suppress the release of flammable vapours when used correctly as part of a suitable firefighting system.

Key Features of the Rosenbauer TOTAL S2 Foam Making Branch Pipe

• 200 LPM nominal flow rate: Designed for a flow rate of 200 litres per minute at the specified operating conditions.
• 5 bar operating pressure: The catalogue lists a working pressure of 5 bar for the S2 heavy foam-making branch pipe.
• Stainless-steel pipe: Provides a durable construction suitable for demanding firefighting equipment applications.
• Protective ring: A protective ring helps protect the branch pipe during handling and use.
• Ball-valve shut-off: The documented S2 configuration includes a ball valve to control the discharge of the foam solution.
• Low-expansion foam production: The catalogue lists an approximate expansion ratio of 1:15 for the S2 heavy foam configuration.
• Multiple coupling options: Listed variants include Storz C, BS threaded connections and an NH threaded connection. Confirm the required version before purchasing.

Technical Specifications

The following specifications are based on the available Rosenbauer catalogue for the S2 heavy foam-making branch pipe. Please confirm that the supplied product matches the relevant catalogue variant.

• Brand: Rosenbauer
• Product type: Heavy foam-making branch pipe
• Model designation: S2
• Nominal flow rate: 200 LPM
• Operating pressure: 5 bar
• Pipe material: Stainless steel
• Protective component: Plastic protection ring
• Shut-off mechanism: Ball valve
• Listed expansion ratio: Approximately 1:15
• Listed foam solution admixture rate: Catalogue table includes 3% and 6% columns; verify the applicable foam type and proportioning requirement before use.
• Listed throw range: Approximately 20 metres under catalogue conditions
• Listed length: Approximately 870 mm
• Listed diameter: Approximately 98 mm
• Listed weight: Approximately 2.6–2.7 kg, depending on coupling configuration
• Connection options: Storz C, BS 1.5-inch male, BS 2.5-inch male or NH 1.5-inch female, depending on variant

Important: The product name “TOTAL S2” should be matched against the supplier's exact model and order number. The catalogue identifies the heavy foam branch pipe as S2 and lists several connection-specific variants. Confirm the coupling, foam concentrate compatibility and required operating conditions before placing an order.

Applications of the Rosenbauer TOTAL S2 Foam Making Branch Pipe

The Rosenbauer TOTAL S2 Foam Making Branch Pipe may be used in firefighting systems where compatible heavy foam is required. Potential applications include:

Industrial Fire Protection

Industrial sites may require foam equipment as part of their fire protection arrangements. The branch pipe can be considered for suitable applications involving compatible foam concentrates and correctly designed delivery systems.

Fuel and Flammable-Liquid Fire Response

Heavy foam-making branch pipes are used for applying foam to appropriate flammable-liquid fire scenarios. The selected foam concentrate, equipment compatibility, application method and fire safety procedures must match the specific hazard.

Warehouses and Commercial Facilities

Warehouses, workshops and commercial premises may include fire risks for which a properly designed foam system is appropriate. Equipment selection should follow the site's fire risk assessment and approved response procedures.

Fire and Rescue Services

Fire and rescue teams may use foam-making branch pipes as part of compatible hose-line equipment. Connection type, flow requirements and available water supply should be checked before deployment.

Emergency Response Equipment

The S2 model may form part of a wider firefighting equipment inventory where its rated flow and foam output meet operational requirements.

How to Select the Correct Foam-Making Branch Pipe

Before purchasing a Rosenbauer TOTAL S2 Foam Making Branch Pipe, check the requirements of your firefighting system.

1. Confirm the required flow rate. Ensure that 200 LPM is appropriate for the intended application and that the water supply can deliver the required flow at the specified pressure.

2. Check the coupling connection. Storz, BS and NH connections are not interchangeable in every configuration. Match the branch pipe to the hose or equipment already installed.

3. Select a compatible foam concentrate. Foam concentrates differ in formulation and intended use. Confirm compatibility with the branch pipe and the target fire hazard, and follow the concentrate manufacturer's instructions.

4. Verify the operating pressure. The catalogue specifies 5 bar for this S2 model. Check that the complete system can maintain the required operating conditions.

5. Confirm the exact product variant. Ask for the relevant model number, coupling type and technical documentation before ordering to avoid receiving an incompatible configuration.

Why Buy Firefighting Equipment from FASCO?

FASCO supplies firefighting and fire safety equipment for customers looking for suitable solutions for commercial, industrial and emergency response requirements. When sourcing foam-making equipment, it is important to consider not only the product model but also its compatibility with existing hoses, foam concentrates and operating conditions.

Contact FASCO to enquire about the Rosenbauer TOTAL S2 Foam Making Branch Pipe, 200 LPM, and confirm the available connection type, current availability and applicable technical specifications before purchase.

Order the Rosenbauer TOTAL S2 Foam Making Branch Pipe

If your firefighting system requires a 200 LPM heavy foam-making branch pipe, the Rosenbauer S2 configuration may be a suitable option, subject to confirmation of the exact model and system requirements. Contact FASCO for product details and assistance in selecting the correct connection and compatible foam equipment.

Choose firefighting equipment based on verified specifications, compatibility and the requirements of your fire protection system.
