Product Technical Overview

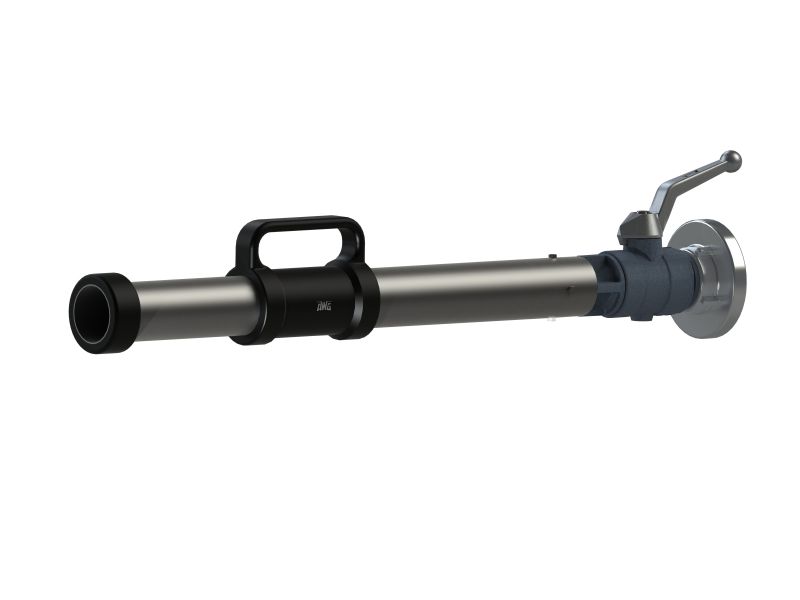

AWG S4 Foam Nozzle 400 LPM, Germany

The AWG S4 Foam Nozzle 400 LPM is professional firefighting equipment manufactured by AWG Fittings GmbH in Germany. Designed for heavy foam application, this branch pipe is intended for use with a compatible foam concentrate solution and suitable foam proportioning equipment. The standard S4 model has a nominal flow rate of 400 litres per minute at a reference pressure of 5 bar.

Foam branch pipes are essential components in firefighting systems where foam is required to cover suitable burning surfaces and help suppress fires involving certain flammable liquids and combustible materials. The AWG S4 draws air into the discharged water-and-foam solution to generate low-expansion foam, which is then directed towards the target area.

The AWG S4 is part of the manufacturer's heavy foam nozzle range. Manufacturer documentation identifies several inlet configurations, including Storz and threaded connections, depending on the supplied variant. Buyers should confirm the precise model and connection before ordering to ensure compatibility with existing firefighting hoses and foam proportioning equipment.

Important product clarification: Your original product name says “High Expansion.” The standard AWG S4 heavy foam nozzle is documented as a low-expansion foam nozzle. AWG also offers medium-foam equipment and combination models, so the correct model should be verified before publishing this listing under a high-expansion designation.

Key Features of the AWG S4 Foam Nozzle

• German manufacturer: Produced by AWG Fittings GmbH, a manufacturer of firefighting equipment and fittings.
• 400 LPM rated flow: Designed to deliver a nominal flow rate of 400 litres per minute at 5 bar.
• Low-expansion foam production: The standard S4 configuration is designed for heavy foam application.
• Expansion ratio: Manufacturer documentation lists a foam expansion ratio of approximately 12–15 under specified test conditions.
• Effective throw distance: Approximately 25 metres according to the manufacturer's published technical information.
• Shut-off valve options: Available configurations include versions with a shut-off valve.
• Multiple inlet connections: Connection options vary by product number and configuration.
• System compatibility: Designed for use with suitable foam inductors and compatible foam concentrates.

Technical Specifications

The following specifications refer to the standard AWG S4 heavy foam branch pipe. Verify the exact supplied variant before purchase.

• Brand: AWG
• Manufacturer: AWG Fittings GmbH
• Country associated with manufacturer: Germany
• Product type: Heavy foam branch pipe / low-expansion foam nozzle
• Model: S4
• Nominal flow rate: 400 LPM
• Reference pressure: 5 bar
• Foam expansion ratio: Approximately 12–15
• Effective foam throw distance: Approximately 25 metres
• Recommended operating pressure: Approximately 3–10 bar, according to the applicable model documentation
• Maximum permissible operating pressure: 16 bar (PN16), subject to the exact model
• Approximate length: 866 mm for the documented standard S4 configuration
• Connection options: Storz 52 (C), Storz 75 (B), and selected threaded or instantaneous connections, depending on variant
• Shut-off valve: Configuration-dependent
• Applicable standard: EN 16712-3, as listed for documented S4 variants

Performance can vary with the operating pressure, foam concentrate, proportioning arrangement and nozzle configuration. Do not apply one variant's dimensions, weight or connection details to every AWG S4 product.

Applications of the AWG S4 Foam Nozzle

Industrial Fire Protection

Industrial facilities may require foam equipment as part of a dedicated fire protection system. The AWG S4 may be suitable where the system requires a 400 LPM low-expansion foam nozzle and the selected foam concentrate is appropriate for the identified fire risk.

Flammable-Liquid Fire Response

Suitable firefighting foam can help cover certain flammable-liquid surfaces and suppress the release of vapours. The foam concentrate and application method must match the particular fuel and hazard. Equipment selection should follow the facility's approved fire protection design.

Warehouses and Commercial Facilities

Some warehouses and commercial premises use foam application equipment to address specific fire hazards. The correct nozzle should be selected according to the fire risk assessment, available water supply, required flow and installed hose connections.

Fire and Rescue Services

Fire and rescue teams may use heavy foam branch pipes as part of compatible hose-line equipment. The nominal flow rate, operating pressure, connection and concentrate compatibility should be checked before the equipment is used in an emergency.

Industrial and Emergency Response Equipment

The AWG S4 can be considered for firefighting equipment inventories where its rated performance meets the requirements of the foam delivery system. It must be operated by trained personnel according to manufacturer instructions and relevant safety procedures.

How to Select the Right AWG Foam Nozzle

1. Identify the required foam expansion. Confirm whether the application requires low-expansion, medium-expansion or high-expansion foam. These are different equipment functions and are not interchangeable.

2. Confirm the flow rate. The standard S4 model is rated at 400 LPM at 5 bar. Check that the pump and water supply can support the required operating conditions.

3. Verify the inlet connection. Select the appropriate Storz, threaded or other compatible connection for the existing hose system.

4. Check the shut-off arrangement. Confirm whether the selected version includes the required shut-off valve and any additional accessories.

5. Match the foam concentrate. Use a concentrate approved for the application and compatible with the proportioning equipment and nozzle.

6. Request manufacturer documentation. Confirm the exact AWG product number, rated performance, connection type and technical specifications before placing an order.

Why Choose AWG Firefighting Equipment from FASCO?

FASCO supplies firefighting and fire safety equipment for customers seeking solutions for industrial, commercial and emergency response requirements. Selecting suitable foam equipment involves checking the flow rate, operating pressure, connection type and compatibility with the rest of the firefighting system.

When enquiring about the AWG S4 Foam Nozzle 400 LPM, customers should confirm the exact product configuration and intended foam application. These checks help ensure the selected equipment is suitable for the site's fire protection requirements.

Contact FASCO for availability information and assistance with sourcing firefighting equipment in Pakistan.

Buy the AWG S4 Foam Nozzle 400 LPM from FASCO

Looking for an AWG S4 Foam Nozzle 400 LPM for your firefighting system? Contact FASCO to enquire about availability, connection options and the applicable technical documentation.

Before ordering, confirm whether the standard low-expansion S4 nozzle or an AWG medium/high-expansion or combination product is required. Choosing the correct equipment is essential for system compatibility and effective operation.
