Elkhart Brass HF-500 Hydro-Foam Self-Educting Nozzle
Wholesale pricing, tiered volume discounts, and GST invoice terms provided based on your required quantity and delivery location across Pakistan.
Product Technical Overview

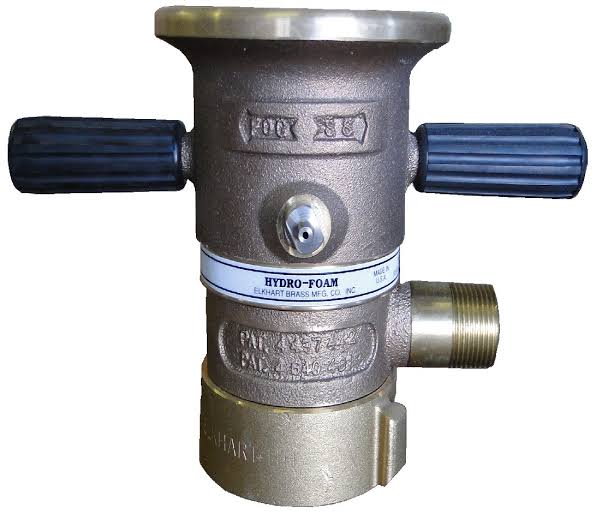

Elkhart Brass HF-500 Hydro-Foam Self-Educting Nozzle
The Elkhart Brass HF-500 Hydro-Foam Self-Educting Nozzle is a high-capacity firefighting nozzle designed to apply foam solution in compatible industrial fire protection applications. Its self-educting design draws foam concentrate through a pick-up hose and proportions it into the water stream, reducing the need for separate foam-mixing equipment.
Manufactured by Elkhart Brass, the HF-500 combines high-flow performance with an adjustable discharge pattern, making it a solution for applications requiring effective foam delivery and flexible stream control.
Key Features
- High-flow performance: Rated at 500 GPM (approximately 1,900 LPM) at 100 PSI (approximately 7 bar).
- Self-educting design: Draws foam concentrate through the supplied pick-up hose.
- Built-in proportioning: Supports selectable foam pick-up rates of ½%, 1%, and 3%.
- Adjustable discharge pattern: Switches between a straight stream and a fog pattern, up to 90 degrees, while flowing.
- 2.5-inch inlet: Features a 2.5-inch female swivel inlet.
- Durable construction options: Available in brass with satin or chrome-plated finishes; an aluminum version is also offered.
- UL-listed model: The manufacturer's product information identifies the HF-500 brass model as UL listed.
Technical Specifications
- Brand: Elkhart Brass
- Model: HF-500
- Product Type: Hydro-Foam self-educting firefighting nozzle
- Rated Flow: 500 GPM (approximately 1,900 LPM)
- Rated Pressure: 100 PSI (approximately 7 bar)
- Inlet Size: 2.5-inch female swivel
- Foam Proportioning Rates: ½%, 1%, and 3%
- Foam Pick-Up Hose: 9 ft (approximately 2.7 m) clear vinyl hose
- Discharge Pattern: Straight stream to fog pattern
- Finish Options: Satin brass or chrome-plated brass; aluminum variant available
- Listing: UL listed, as specified for the HF-500 brass model
Applications
The HF-500 is intended for compatible high-flow foam firefighting systems in industrial and other fire protection environments. Foam concentrate selection, proportioning rate, operating pressure, and system compatibility should be confirmed before use.
Why Choose the Elkhart Brass HF-500?
The HF-500 integrates foam pick-up and proportioning into the nozzle design, helping simplify foam application where a compatible water supply and foam concentrate are available. Its high nominal flow rate and changeable discharge pattern provide flexibility for trained firefighting personnel working with appropriately designed fire protection systems.
Buy Firefighting Foam Equipment from FASCO
FASCO supplies firefighting and fire protection equipment for professional applications. Contact our team to confirm the availability, configuration, finish, and compatibility of the Elkhart Brass HF-500 Hydro-Foam Self-Educting Nozzle for your requirements.
Important: Confirm the nozzle configuration and the foam concentrate manufacturer's requirements before selecting a proportioning rate or putting the equipment into service.
Key Industrial Features
- Heavy-Duty Construction: Built for severe industrial environments, extreme temperature resistance, and high-frequency operational duty.
- Standardized Ergonomics: Designed for prolonged wearing and user comfort without sacrificing required safety margins.
- Certified Reliability: Full batch inspection traceability guaranteeing compliance with required safety standards.
- Corporate Supply Support: Bulk packaging, user safety training documentation, and manufacturer test certificates available on request.
