Product Technical Overview

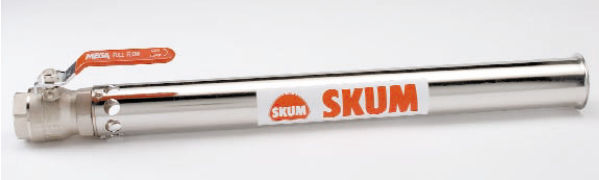

SKUM MLR Low Expansion Foam Branchpipe

The SKUM MLR Low Expansion Foam Branchpipe is a portable, hand-held foam applicator designed for firefighting applications involving flammable liquid spills and suitable small fires. The SKUM MLR range provides a practical option for fire protection teams that need portable equipment for directing foam onto a target area. Its suitability depends on the fire hazard, foam concentrate, water supply, and the requirements of the complete firefighting system.

The MLR-40 range includes different configurations with varying flow rates and operating pressures. The standard MLR-40 A and self-inducing MLR-40 SA versions serve different system arrangements. The self-inducing version includes a foam concentrate pick-up tube and can draw concentrate into the water stream when operated within its specified conditions.

According to the published product datasheet, the MLR range features a stainless-steel body and brass nozzle, is designed for indoor and outdoor use, and offers a maximum stated capacity of up to 555 L/min across the range. Exact performance depends on the selected model and configuration.

Key Features

1. Portable Foam Application

The SKUM MLR branchpipe is a hand-held foam applicator designed to help operators direct foam towards the intended fire or spill area. Its portable format can be useful where a suitable mobile foam application device is required.

2. Stainless-Steel Body and Brass Nozzle

The published MLR datasheet identifies a stainless-steel pipe body and brass nozzle. The valve is specified as nickel-plated brass in the documented configuration. These material details should be checked against the exact model supplied.

3. Multiple Flow and Pressure Options

The MLR-40 range includes several rated flow and pressure combinations. Published configurations include 200 L/min at 5 bar, 215 L/min at 3 or 6 bar, and 400 L/min at 3, 5, or 6 bar. The applicable combination depends on the specific product code.

4. Self-Inducing Option

The MLR-40 SA version includes a foam concentrate pick-up tube and has a stated foam induction capacity of up to 6%. The actual induction percentage must match the model configuration and foam concentrate requirements.

5. Indoor and Outdoor Use

The product documentation identifies the MLR range as suitable for indoor and outdoor use. The suitability of a particular installation must still be assessed against the fire hazard, system design, and manufacturer instructions.

6. Different Product Configurations

The MLR range is offered in versions with and without self-induction. Before ordering, confirm whether the application requires a branchpipe supplied with premixed foam solution or a self-inducing configuration.

Technical Specifications

The following information is based on published SKUM MLR range documentation. Confirm the exact product code before using these details as the specifications of an individual listing.

• Product Name: SKUM MLR Low Expansion Foam Branchpipe
• Product Range: MLR-40
• Manufacturer / Brand: SKUM
• Product Type: Portable low-expansion foam branchpipe
• Available Versions: MLR-40 A and MLR-40 SA
• Flow Rate Options: 200, 215, and 400 L/min in documented configurations
• Operating Pressure Options: 3, 5, and 6 bar, depending on configuration
• Maximum Stated Range Capacity: Up to 555 L/min across the range
• Foam Induction: Up to 6% for the MLR-40 SA version
• Pipe Body: Stainless steel
• Nozzle: Brass
• Valve: Nickel-plated brass in the documented configuration
• Standard Connection: 1½-inch female BSP thread in the referenced datasheet; verify the supplied variant
• Weight: Approximately 3.2 kg for MLR-40 A and 4 kg for MLR-40 SA
• Foam Expansion Ratio: Up to approximately 1:15 in published catalogue information
• Foam Pick-Up Tube: Included with MLR-40 SA
• Country of Manufacture: Confirm with supplier documentation
• Approvals: Published documentation lists approvals or qualifications including BV, RINA, DNV, and RMRS; verify applicability to the exact model and current product documentation

Applications

Depending on the selected configuration and approved fire protection design, the SKUM MLR branchpipe may be suitable for:

• Flammable liquid spill coverage
• Suitable small-fire applications
• Industrial firefighting operations
• Facilities requiring portable foam application equipment
• Indoor and outdoor firefighting operations where the equipment is appropriate
• Mobile firefighting equipment arrangements using compatible foam systems

Always assess the fire hazard and ensure that the foam concentrate, proportioning equipment, water supply, and branchpipe are compatible.

How to Select the Correct SKUM MLR Model

Confirm the Required Flow Rate

Choose the flow configuration that matches the firefighting system design and available water supply. Do not assume that every MLR-40 variant has the same flow rate.

Check the Operating Pressure

Confirm the required inlet pressure for the exact product code. Flow and discharge performance vary with the operating conditions.

Select the Correct Induction Arrangement

The MLR-40 A is the non-self-inducing version, while the MLR-40 SA includes a foam concentrate pick-up tube. Confirm which arrangement is required for the intended system.

Verify the Foam Concentrate Percentage

The self-inducing version supports induction up to 6% in documented configurations. The required proportioning rate must be compatible with the selected foam concentrate and the equipment configuration.

Check the Connection Type

Verify the inlet thread or coupling standard before ordering to ensure compatibility with the hose and other firefighting equipment.

Request the Exact Product Code

SKUM publishes several MLR-40 variants with different flow, pressure, and induction configurations. Ask for the complete product code and datasheet to ensure that the supplied equipment matches your requirements.
